JO 7110.65 6-5-3

Apply lateral DME separation by requiring aircraft using DME to fly an arc about a NAVAID at a specified distance using the following minima: (See FIG 6-5-2 .)

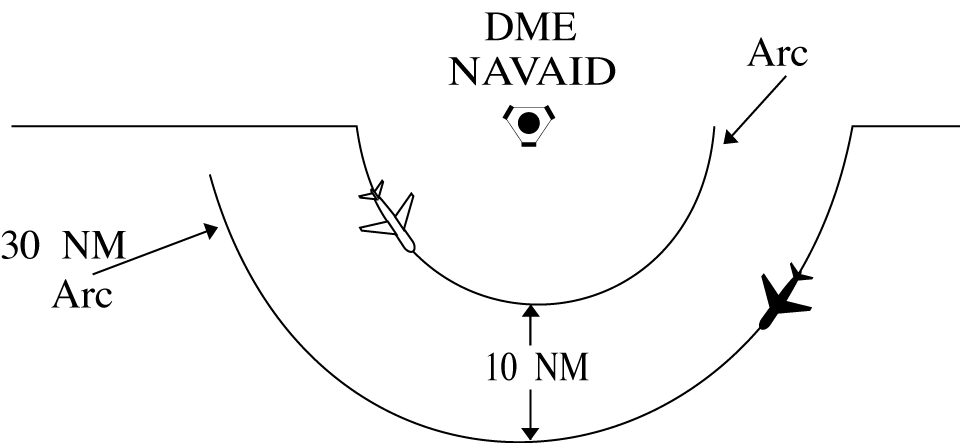

FIG 6-5-2 DME Arc Minima

REFERENCE-

FAA Order JO 7110.65, Para 2-5-2 , NAVAID Terms.

Between different arcs about a NAVAID regardless of direction of flight: At 35 miles or less from the NAVAID- 10 miles.

More than 35 miles from the NAVAID- 20 miles.

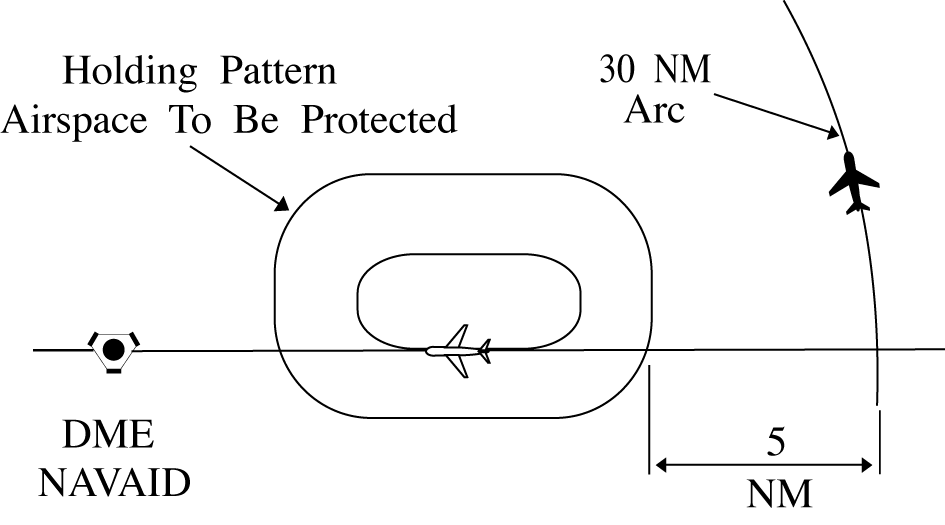

Between an arc about a NAVAID and other airspace to be protected: (See FIG 6-5-3.) FIG 6-5-3 DME Arc Minima

NOTE-

The other airspace to be protected may be a MOA, a holding pattern, airway or route, ATCAA, Warning Area, Restricted Area, Prohibited Area, etc.

At 35 miles or less from the NAVAID- 5 miles .

More than 35 miles from the NAVAID- 10 miles. PHRASEOLOGY-

VIA (number of miles) MILE ARC (direction) OF (name of DME NAVAID).
