JO 7110.65 6-2-1

Separate aircraft that will fly courses diverging by 45 degrees or more after departing the same or adjacent airports by use of one of the following minima:

NOTE-

Consider known aircraft performance characteristics when applying initial separation to successive departing aircraft.

When one or both of the departure surfaces is a helipad or vertipad, use the takeoff course as a reference, comparable to the centerline of a runway, and the helipad/vertipad center as the threshold.

When aircraft will fly diverging courses: Immediately after takeoff - 1 minute until courses diverge. (See FIG 6-2-1.) FIG 6-2-1 Minima on Diverging Courses

Within 5 minutes after takeoff- 2 minutes until courses diverge. (See FIG 6-2-2.) FIG 6-2-2 Minima on Diverging Courses

Within 13 miles DME/ATD after takeoff - 3 miles until courses diverge. (See FIG 6-2-3.) FIG 6-2-3 Minima on Diverging Courses

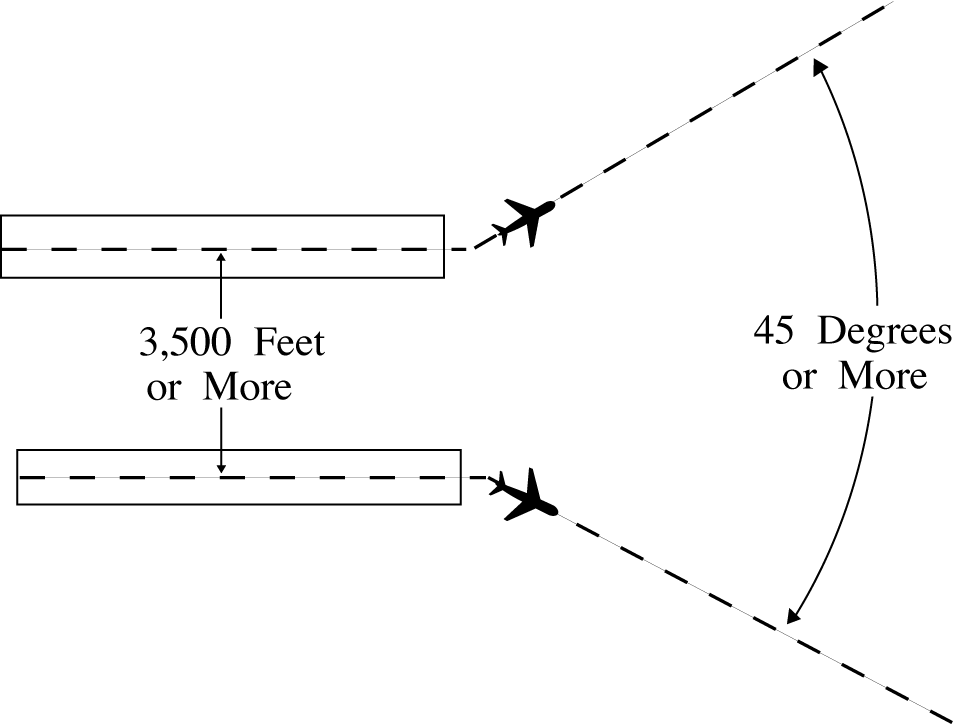

TERMINAL. Between aircraft departing in the same direction from different runways whose centerlines are parallel and separated by at least 3,500 feet, authorize simultaneous takeoffs when the aircraft will fly diverging courses immediately after takeoff. (See FIG 6-2-4.) FIG 6-2-4 Minima on Diverging Courses

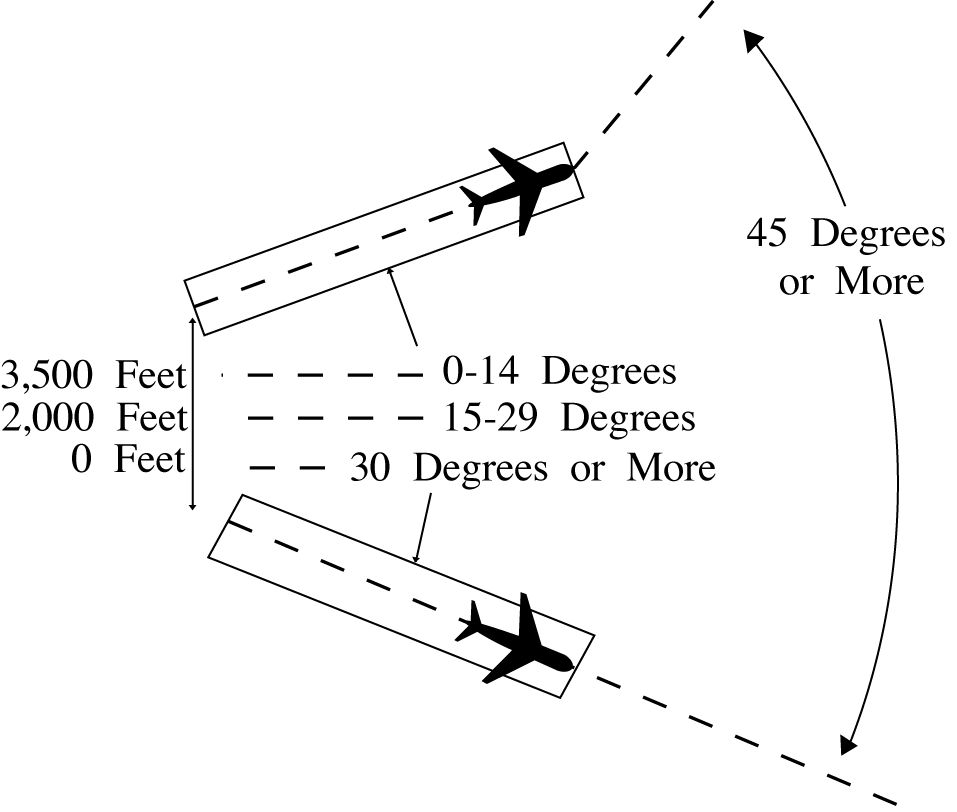

TERMINAL. Between aircraft that will fly diverging courses immediately after takeoff from diverging runways: (See FIG 6-2-5.) Nonintersecting runways. Authorize simultaneous takeoffs when either of the following conditions exist: The runways diverge by 30 degrees or more.

The distance between runway centerlines at and beyond the points where takeoffs begin is at least: 2,000 feet and the runways diverge by 15 to 29 degrees inclusive.

3,500 feet and the runways diverge by less than 15 degrees. FIG 6-2-5 Minima on Diverging Courses

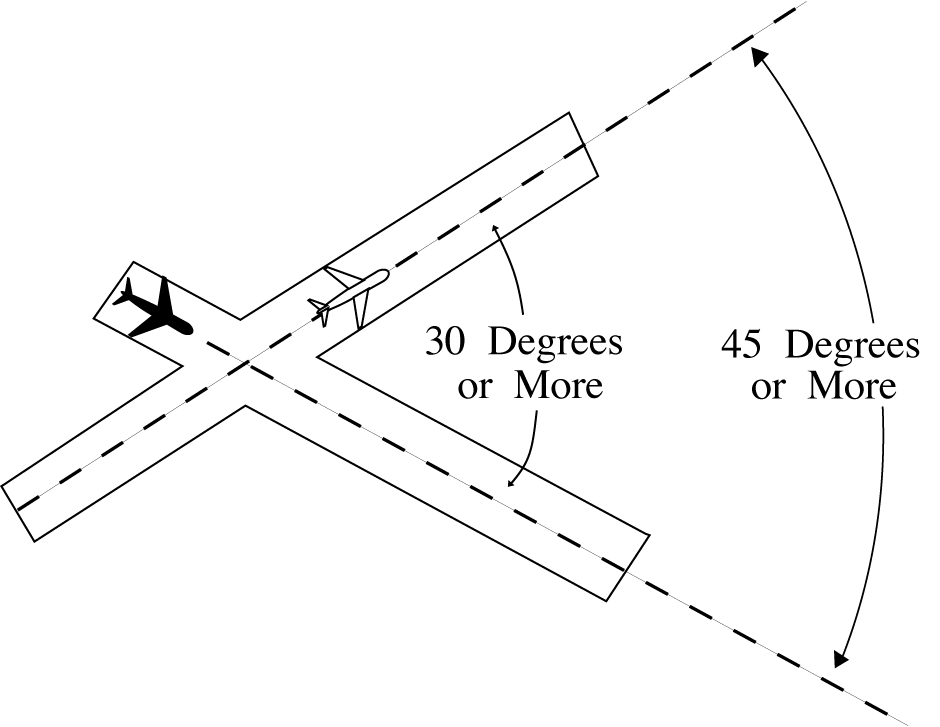

Intersecting runways. Authorize takeoff of a succeeding aircraft when the preceding aircraft has passed the point of runway intersection, and The runways diverge by 30 degrees or more. (See FIG 6-2-6.) FIG 6-2-6 Minima on Diverging Courses

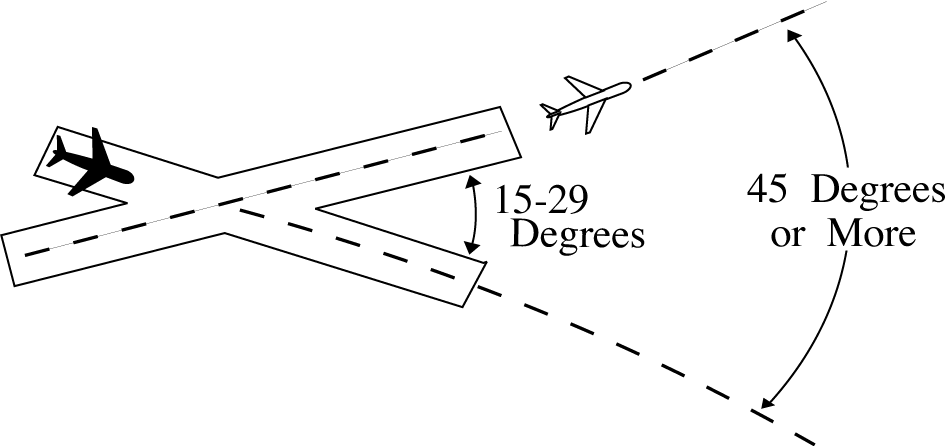

The runways diverge by 15 to 29 degrees inclusive and the preceding aircraft has commenced a turn. (See FIG 6-2-7.) FIG 6-2-7 Minima on Diverging Courses
