JO 7110.65 5-8-3

TERMINAL

Separate aircraft departing from the same airport/heliport/vertiport or adjacent airports/heliports/vertiports in accordance with the following minima provided radar identification with the aircraft will be established within 1 mile of the takeoff runway end/helipad/vertipad and courses will diverge by at least the minimum required, as stated below.

REFERENCE-

FAA Order JO 7110.65, Para 3-9-7 , Wake Turbulence Separation for Intersection Departures.

FAA Order JO 7110.65, Para 3-9-8 , Intersecting Runway/Intersecting Flight Path Operations.

FAA Order JO 7110.65, Para 5-5-4 , Minima, Subpara g .

NOTE-

FAA Order 8260.46, Departure Procedure (DP) Program, and FAA Order 8260.3, United States Standard for Terminal Instrument Procedures (TERPS), Volume 4, establishes guidelines for IFR departure turning procedures which assumes a climb to 400 feet above the departure end of runway (DER) elevation before a turn is commenced. TERPS criteria ensures obstacle clearance with a climb gradient of 200 feet per nautical mile from the DER. “Immediately after departure” is considered to be any turn that provides at least the minimum required divergence that commences no later than 2 miles from the DER.

Consider known aircraft performance characteristics when applying initial separation to successive departing aircraft.

When one or both of the departure surfaces is a helipad/vertipad, use the takeoff course as a reference, comparable to the centerline of a runway and the helipad/vertipad center as the threshold.

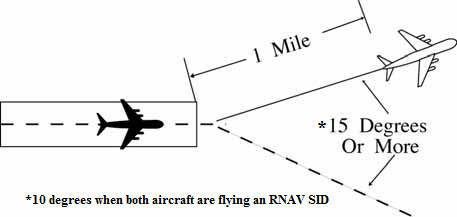

Between successive departures from the same runway/helipad/vertipad or parallel runways/takeoff courses separated by less than 2,500 feet- 1 mile if courses diverge by 15 degrees or more immediately after departure. (See FIG 5-8-1, FIG 5-8-2, and FIG 5-8-3.) FIG 5-8-1 Successive Departures

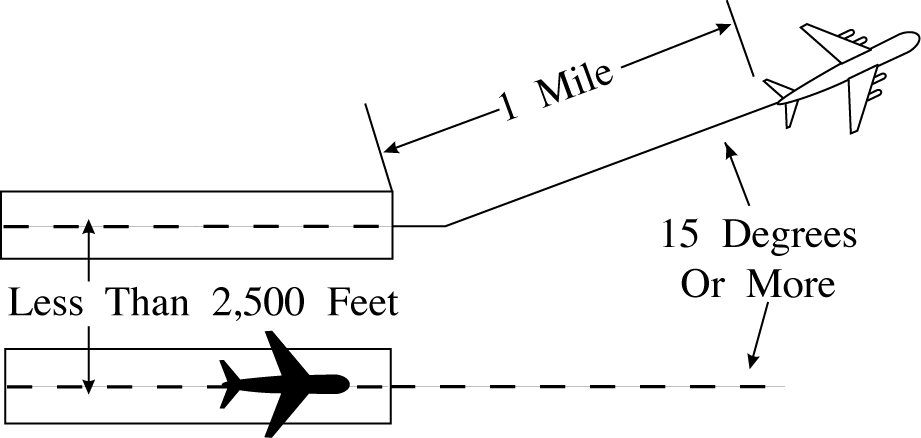

FIG 5-8-2 Simultaneous Departures

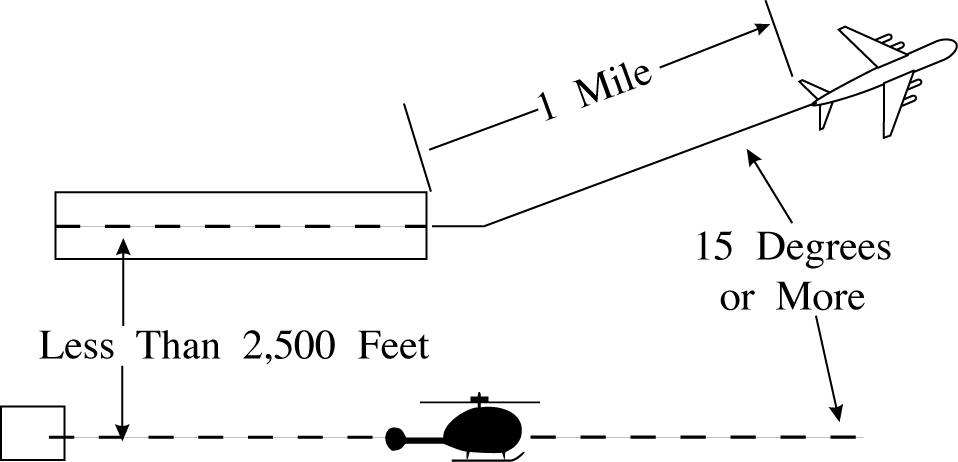

FIG 5-8-3 Simultaneous Departures

NOTE-

This procedure does not apply when wake turbulence separation is required.

Between simultaneous departures departing in the same direction from parallel runways/takeoff courses, authorize simultaneous takeoffs if the centerlines/takeoff courses are separated by at least 2,500 feet and courses diverge by 15 degrees or more immediately after departure. (See FIG 5-8-5, and FIG 5-8-6.) REFERENCE-

FAA Order JO 7110.65, Para 5-5-4 , Minima, Subparagraph f .

When both aircraft are flying an RNAV SID: Between successive departures from the same runway– 1 mile if courses diverge by 10 degrees or more immediately after departure. (See FIG 5-8-1.) NOTE-

This procedure does not apply when wake turbulence separation is required.

Between simultaneous departures from parallel runways/takeoff courses, authorize simultaneous takeoffs if the centerlines/takeoff courses are separated by at least 700 feet and less than 2,500 feet, courses diverge by 15 degrees or more, and departures are released in accordance with the release distance stagger stated in TBL 5-8-1 below. TBL 5-8-1 Departure Release Distances Distance to Divergence

(Measured from the further DER)

Minimum Centerline Separation

Release Distance Stagger

Immediately

700

1000 feet

No later than 5 NM

1020

2000 feet

No later than 8 NM

1130

3000 feet

No later than 11 NM

1360

4000 feet

NOTE-

This procedure does not apply when wake turbulence separation is required.

FIG 5-8-4 Simultaneous Dependent Departures

Between simultaneous departures from parallel runways/takeoff courses, authorize simultaneous takeoffs if the centerlines/takeoff courses are separated by at least 2,500 feet and courses diverge by 10 degrees or more immediately after departure. (See FIG 5-8-5, and FIG 5-8-6.) NOTE-

RNAV SIDs specific to this paragraph are those SIDs constructed with a specific lateral path that begins at the DER.

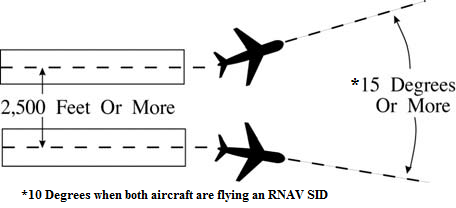

FIG 5-8-5 Parallel Runway Departures

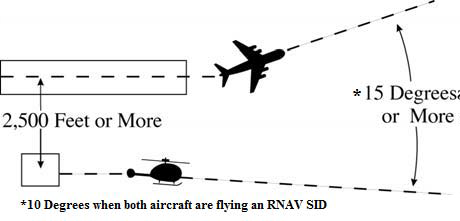

FIG 5-8-6 Parallel Helipad/Vertipad Course Departures

Between aircraft departing from diverging runways: Nonintersecting runways. Authorize simultaneous takeoffs if runways diverge by 15 degrees or more. (See FIG 5-8-7.) FIG 5-8-7 Nonintersecting Runway Departures

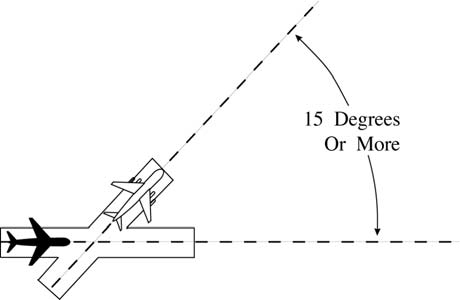

Intersecting runways and/or takeoff courses that diverge by 15 degrees or more. Authorize takeoff of a succeeding aircraft when the preceding aircraft has passed the point of runway and/or takeoff course intersection. When applicable, apply the procedure in paragraph 3-9-5 , Anticipating Separation. (See FIG 5-8-8 and FIG 5-8-9.) FIG 5-8-8 Intersecting Runway Departures

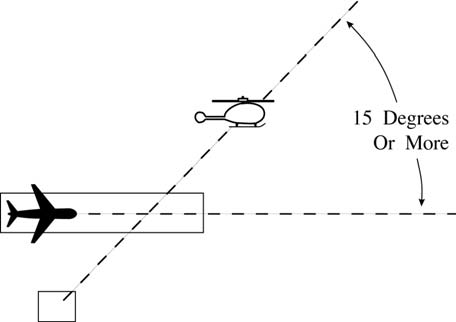

FIG 5-8-9 Intersecting Helipad/Vertipad Course Departures

NOTE-

This procedure does not apply when wake turbulence separation is required.

REFERENCE-

FAA Order JO 7110.65, Para 5-5-4 , Minima, Subparagraph f .
