JO 7110.65 4-1-1

When specifying a route other than an established airway or route, do not exceed the limitations in the table on any portion of the route which lies within controlled airspace. (For altitude and distance limitations, see TBL 4-1-1 , TBL 4-1-2 , and TBL 4-1-3 ) (For correct application of altitude and distance limitations see FIG 4-1-1 and FIG 4-1-2 .)

REFERENCE-

FAA Order JO 7110.65, Para 4-1-5 , Fix Use.

FAA Order JO 7110.65, Para 5-6-2 , Methods.

TBL 4-1-1 VOR/VORTAC/TACAN NAVAIDs Class

Altitude

Distance

(miles)

T

12,000 and below

25

L

Below 18,000

40

H

Below 14,500

40

H

14,500 - 17,999

100

H

18,000 - FL 450

130

H

Above FL 450

100

TBL 4-1-2 L/MF Radio Beacon (RBN) Class

Power (watts)

Distance

(miles)

CL

Under 25

15

MH

Under 50

25

H

50 - 1,999

50

HH

2,000 or more

75

TBL 4-1-3 ILS Height (feet)

above transmitter

Distance

(miles from transmitter)

4,500

10 (for glideslope)

4,500

18 (for localizer)

*Use the current flight check height/altitude limitations if different from the above minima.

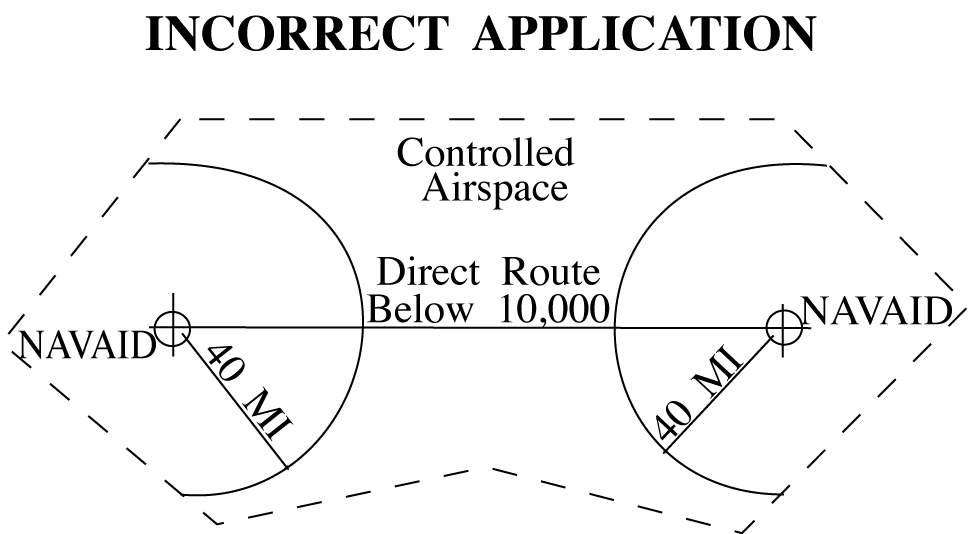

FIG 4-1-1 Application of Altitude and Distance Limitations

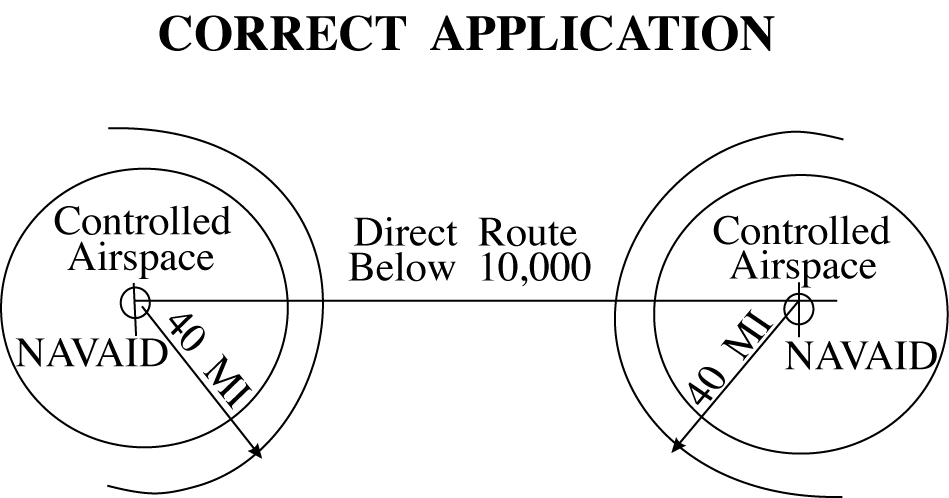

FIG 4-1-2 Application of Altitude and Distance Limitations
